Albuquerque sits at 1,619 m above sea level, with annual monsoon rains that drop up to 250 mm in a few hours. Those intense storms carve arroyos through the alluvial fans of the Sandia Mountains, undercutting slopes built on older terrace deposits. Our team has designed stabilization schemes for slopes up to 18 m high in the West Mesa and along the Rio Grande valley, where the groundwater fluctuates seasonally. Before any cut or fill, we run a detailed stability analysis that considers the collapsible nature of the local soils and the site's seismic classification per ASCE 7. Combining limit-equilibrium software with field data from instrumentation and monitoring helps us verify assumptions during construction.
Monsoon events in Albuquerque can raise pore pressures in collapsible soils by 40 percent in under six hours, triggering sudden shallow failures.
Methodology and scope
Local considerations
We deploy a crew with a backhoe-mounted dynamic cone penetrometer and a portable shear vane to log strength profiles on site. In Albuquerque, the main risk is undetected piping erosion along buried utility trenches that daylight on the slope face. A 7 m high cut in the Sunport area failed in 2019 because a storm drain leak had saturated a sandy silt layer over two seasons. Our protocol includes a pre-construction utility survey and an infiltration test at the slope crest. We also mark all tension cracks with plaster gauges and monitor them weekly during the rainy season. If movement exceeds 5 mm in a week, we install a temporary drainage blanket and flatten the angle.
Applicable standards
FHWA-NHI-05-089 (Mechanically Stabilized Earth Walls), ASCE 7-22 (Minimum Design Loads for Buildings – Chapter 11/12 seismic), ASTM D4767-18 (Consolidated Undrained Triaxial Compression Test)
Associated technical services
Limit-Equilibrium & Finite-Element Analysis
We model circular and non-circular failure surfaces using Spencer and Morgenstern-Price methods. Finite-element seepage analysis tracks pore pressure buildup during rain events.
Reinforced Soil & Anchor Systems

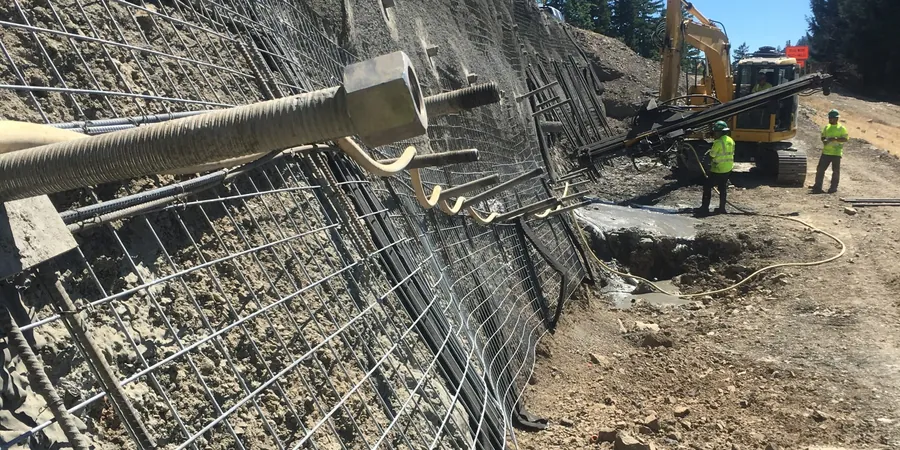

Design of geogrid-reinforced steep slopes, soil nail walls, and grouted tieback anchors. We size the reinforcement based on FHWA method and verify pullout capacity.
Surface & Subsurface Drainage Design
We design interceptor trenches, horizontal drains, and riprap-lined channels to divert runoff. Subdrain spacing is optimized using steady-state seepage models.
Typical parameters
Frequently asked questions
What is the typical factor of safety required for slope stabilization design in Albuquerque?
For static conditions we target a minimum factor of safety of 1.5. For pseudo-static seismic analysis we use 1.1. These values follow FHWA guidance and local building department requirements.
How does collapsible soil affect slope stability in Albuquerque?
Collapsible soils in the city's alluvial fans lose strength abruptly when wetted. A dry slope may show a factor of safety above 2.0, but after a monsoon storm it can drop below 1.0. We model unsaturated conditions and wetting fronts to capture this behavior.
What is the cost range for a slope stabilization design study?
For a typical residential or commercial slope in Albuquerque, the study cost ranges between US$1,500 and US$6,460. The final figure depends on slope height, access conditions, and the number of borings required.
What soil tests are most relevant for slope design in the Albuquerque area?
We prioritize consolidated undrained triaxial tests (ASTM D4767), direct shear tests on undisturbed samples, and Atterberg limits. For collapsible soils, a double-oedometer collapse test is essential to quantify settlement potential upon wetting.
Do you provide construction monitoring for slope stabilization projects?
Yes. Our team installs inclinometers, piezometers, and surface monuments. We review readings weekly during the rainy season and issue a report with any corrective actions needed to maintain the design factor of safety.
