A common mistake builders make in Albuquerque is assuming that any layer of compacted fill can support a foundation without thorough testing. The city's alluvial soils and historic arroyo channels mean fill composition varies wildly — from clean sand and gravel to debris-laced silty clays dumped decades ago. Without proper analysis, differential settlement can crack slabs and tilt walls within the first five years. Our foundations on fill analysis starts with borings and shallow test pits to identify the fill's origin, thickness, and compaction state. We then correlate that data with settlement models to give you a reliable bearing capacity figure before you pour a single yard of concrete. This approach has saved projects along the Rio Grande Valley from costly post-construction repairs.
Fill placed before 1990 in Albuquerque rarely meets today's IBC compaction standards, making site-specific analysis essential for long-term foundation performance.
Methodology and scope

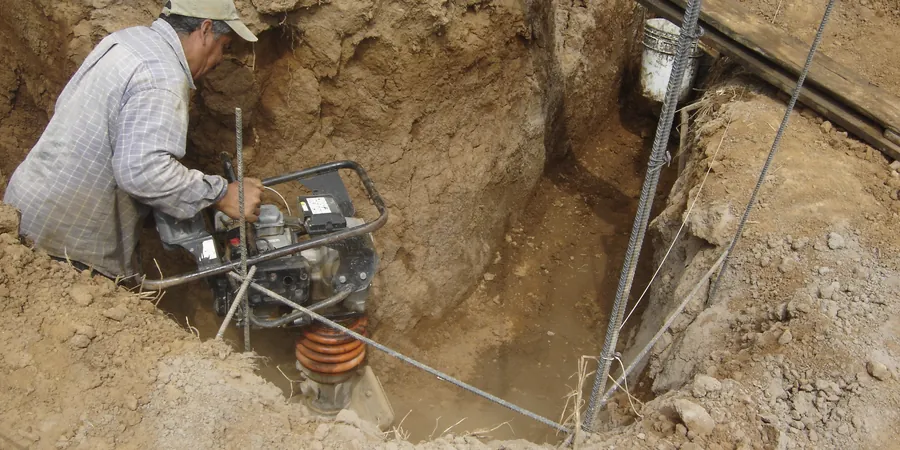

- Dry density and moisture content via nuclear gauge or sand cone tests
- Grain size distribution to detect lenses of loose material
- Atterberg limits on fine-grained fill to assess shrink-swell potential
Local considerations
A 4-story apartment complex near I-25 and Candelaria was built over a former gravel pit filled with mixed debris and clay. The contractor relied on a single boring that hit dense sand at 3 m, but the fill was actually 6 m thick in the center of the lot. Within two years, the slab-on-grade cracked along a 15 m line, and interior walls showed 40 mm of differential settlement. Our foundations on fill analysis would have caught the fill depth variation by using multiple borings and asentamiento-diferencial modeling. The lesson is clear: in Albuquerque's heterogeneous fill, one boring is never enough.
Applicable standards
IBC 2021 Section 1804 (Allowable Bearing Capacity), ASTM D1586-18 (Standard Penetration Test), ASTM D2487-17 (Classification of Soils for Engineering Purposes), ASTM D698-12 (Standard Proctor Compaction), ASCE 7-22 Minimum Design Loads (Settlement and Seismic)
Associated technical services
Fill Characterization & Compaction Testing
Detailed logging of fill materials during excavation, in-situ density testing, and laboratory compaction curves to verify that the fill meets project specifications.
Settlement & Bearing Capacity Analysis
Finite element modeling of immediate and consolidation settlement using fill-specific modulus values, with recommended foundation solutions such as over-excavation or deep foundations.
Pre-Construction Fill Investigation
Multi-boring program with soil sampling and laboratory testing (grain size, Atterberg limits, Proctor, direct shear) to classify fill and recommend allowable bearing pressures for shallow or deep foundations.
Typical parameters
Frequently asked questions
What is the typical cost for a foundations on fill analysis in Albuquerque?
The typical cost ranges between US$750 and US$2,710 depending on the number of borings, laboratory tests required, and the depth of fill encountered. A basic investigation with two borings and compaction testing falls near the lower end, while a full program with settlement modeling and multiple lab tests approaches the upper range. We provide a detailed quote after a site walk or review of existing plans.
How deep should I investigate the fill before building a foundation?
Borings should extend at least 1.5 times the footing width below the base of the fill, or to a depth where competent natural soil or rock is encountered, whichever is greater. In Albuquerque, where fill can be 5–8 m deep in old arroyos, we often recommend borings to 10 m to verify that the underlying natural soil can support the load without excessive settlement.
Can I build directly on compacted fill without special foundation design?
Only if the fill has been engineered, placed, and tested to IBC compaction standards (typically 95% of maximum dry density) and the bearing capacity has been verified by a geotechnical investigation. For undocumented or old fill, over-excavation and re-compaction, deep foundations, or a reinforced mat slab are usually required. Our analysis will determine the safest and most economical approach for your specific site.
