IBC Chapter 18 and ASCE 7 set the baseline, but in Albuquerque the real conversation starts with the Rio Grande valley deposits. The city sits on a half-graben basin filled with interbedded sands, silts, and clays that can extend hundreds of feet deep. You hit saturated lenses at depths as shallow as 15 feet in the valley floor, which changes everything for a tunnel drive. Our laboratory runs the full cycle: Shelby tube extraction, triaxial CU and UU on undisturbed samples, consolidation tests to nail down the preconsolidation pressure, and grain size distribution per ASTM D2487. We’ve seen projects where a 10-foot variation in the groundwater table doubled the required face support pressure. That’s the level of detail you need before a TBM ever touches the ground.

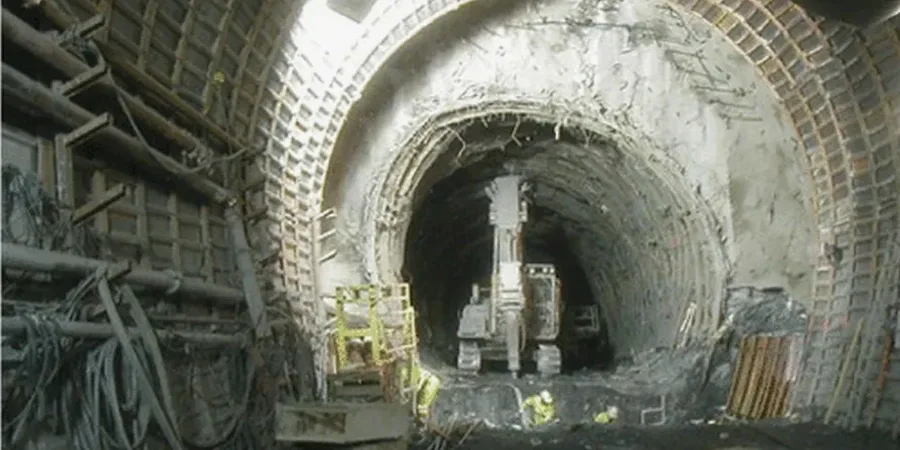

A tunnel face in Albuquerque’s valley fill can lose stand-up time in minutes if the pore pressure isn’t managed before excavation.
Process and scope
Area-specific notes
Here’s what we notice after running dozens of Albuquerque tunnel investigations: the biggest surprises come from paleochannels. The Rio Grande has shifted course many times, and you can have a buried channel filled with loose, clean sand right next to stiff clay. If your boreholes miss that channel, your TBM hits a running-ground condition with no warning. We’ve seen contractors lose face stability within hours because the cohesionless material simply won’t arch. When the tunnel alignment stays within the same formation, we recommend a cpt-test profile to catch those hidden lenses between conventional borings. The CPT picks up thin sand seams that a standard split spoon can miss entirely, and the pore pressure dissipation data tells you exactly how fast the ground will drain during excavation.
Relevant standards
ASTM D1586-18 (Standard Penetration Test), ASTM D2487-17 (Unified Soil Classification), IBC 2021 Chapter 18 (Soils and Foundations), ASCE 7-22 (Seismic Loads), ASTM D4767-11 (Consolidated Undrained Triaxial)
Linked services
Tunnel Face Stability Analysis
We combine undrained shear strength from triaxial UU tests with groundwater pore pressure data to calculate required face support pressure for EPB or slurry TBMs in the Santa Fe Group sediments.
Settlement and Ground Loss Assessment
Using oedometer consolidation data and in-situ density from Shelby tubes, we estimate short-term and long-term settlement troughs above the tunnel crown, critical for protecting downtown Albuquerque infrastructure.
Soil Conditioning and Grout Compatibility
Atterberg limits, grain size curves, and permeability tests feed our evaluation of foam conditioning agents and tail-void grout mixes for the specific silty sands and lean clays found in the Rio Grande basin.
Typical parameters
Common questions
What’s the typical investigation depth for a soft soil tunnel in Albuquerque?
We usually go at least 1.5 to 2 tunnel diameters below the invert for borings, which in Albuquerque valley conditions often means 60 to 100 feet. If the alignment is near the Sandia foothills, we may need to reach bedrock to confirm there’s no abrupt change in bearing. The exact depth depends on the tunnel diameter and whether the groundwater table sits within the excavation zone.
How much does a geotechnical investigation for a soft ground tunnel cost in Albuquerque?
For Albuquerque soft ground tunnel projects, the geotechnical analysis typically ranges from US$3,770 to US$17,320 depending on the number of borings, the laboratory testing program (triaxial, consolidation, permeability), and whether CPT soundings or geophysical surveys are included. A small-diameter utility tunnel with limited access will be on the lower end; a full-diameter transit tunnel with multiple cross-passages runs toward the higher figure.
Do you test for liquefaction potential in the tunnel alignment?
Yes. Even though liquefaction is more often associated with shallow foundations, a tunnel in saturated, loose sand can experience buoyancy and lateral spreading during a seismic event. We run cyclic triaxial or cyclic simple shear on undisturbed samples and apply the NCEER/Youd-Idriss simplified procedure to assess the factor of safety against liquefaction along the entire alignment.
How long does the laboratory testing phase take?
A complete soft-ground tunnel testing program in our Albuquerque lab generally takes 3 to 5 weeks. Consolidation tests need about a week per sample, and consolidated-undrained triaxial with pore pressure measurement requires precise saturation and shearing stages. Index tests like Atterberg limits and grain size can be completed in a few days. We stage the program so preliminary results are available for design while longer-duration tests finish.
