Deep Excavation Geotechnical Design in Albuquerque

The International Building Code (IBC 2024) and ASCE 7-22 require a site-specific geotechnical investigation for any excavation deeper than 20 feet in the Albuquerque metro area. The city sits atop the Rio Grande rift, where basin-fill deposits of the Santa Fe Group — interbedded sands, silts, and gravels — alternate with cemented caliche layers that behave like weak rock. Designing a shoring system without understanding the transition between these materials leads to over-excavation, unexpected collapse, or groundwater blow-in. Our team applies ASTM D2487 soil classification and ASTM D1586 SPT data to build a ground model that captures lateral variability across the basin. For deep cuts near the Sandia foothills, we also evaluate the influence of colluvial wedges and perched water on earth pressure distributions. A reliable in-situ permeability assessment is often the deciding factor between a drained and undrained design scenario.

Cemented caliche layers in the Santa Fe Group create a false sense of security — they ravel quickly once unsupported, and the transition to underlying sand demands a graded shoring approach.

Process and scope

Albuquerque’s semi-arid climate masks a complex subsurface reality: summer monsoon storms can saturate near-surface silts within minutes, while winter freeze-thaw cycles degrade exposed caliche faces. Our deep excavation designs incorporate these seasonal extremes. We run drained and undrained effective stress analyses using PLAXIS 2D and 3D, calibrating the hardening soil model against laboratory triaxial data. For cuts exceeding 25 feet in the downtown corridor — where right-of-way constraints are tight — we specify soldier pile and lagging walls with tieback anchors, verifying anchor bond length in the gravel units through pull-out tests. The anchor system capacity depends heavily on gravel density and cementation, which we quantify with SPT blow counts and grain-size distribution curves. Dewatering requirements are sized using the Dupuit-Thiems method, but only after confirming hydraulic conductivity through packer or slug tests in the target aquifer.

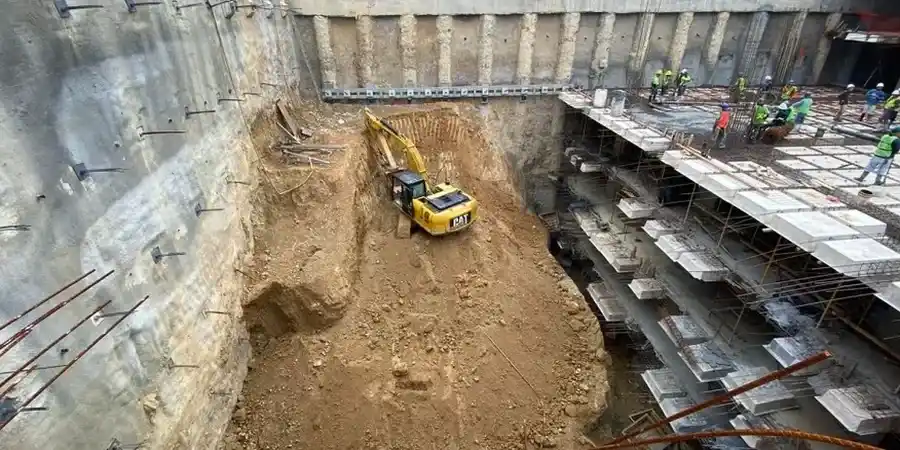

Deep Excavation Geotechnical Design in Albuquerque — IBC-Compliant Analysis

Area-specific notes

The most common mistake we see on Albuquerque deep excavation projects is treating caliche as an impermeable barrier and ignoring the perched water that accumulates above it during monsoon season. A contractor opens a cut to 22 feet, the caliche is exposed, and everything looks stable for three weeks. Then a heavy August storm saturates the overlying silt, the perched water table rises two feet overnight, and the face starts sloughing. The fix is expensive — emergency dewatering, regrading, and sometimes partial backfill. Our designs include a perched water contingency in the earth pressure calculations, with drainage measures specified in the construction documents so the contractor knows exactly where to install weep holes or horizontal drains before the cut reaches final depth.

Need a geotechnical assessment?

Reply within 24h.

Email: [email protected]

Relevant standards

IBC 2024 (Chapter 18 — Soils and Foundations), ASCE 7-22 (Minimum Design Loads), ASTM D1586-18 (Standard Penetration Test), ASTM D2487-17 (Unified Soil Classification System), FHWA GEC No. 4 — Ground Anchors and Anchored Systems, PTI DC35.1-14 (Recommendations for Prestressed Rock and Soil Anchors)

Linked services

Shoring System Design

Selection and structural design of soldier pile, secant pile, or diaphragm walls based on subsurface profile, right-of-way limits, and groundwater conditions.

Tieback Anchor Engineering

Bond length verification in cemented gravels, pull-out test specifications, and lock-off load calculations per PTI recommendations.

Dewatering and Groundwater Control

Pumping test interpretation, wellpoint and deep well system design, and drawdown prediction using finite-difference models.

Construction-Phase Monitoring Program

Inclinometer and settlement point layout, vibration monitoring near historic adobe structures, and trigger-level action plans.

Typical parameters

Parameter	Typical value
Maximum excavation depth analyzed	65 ft (typical for downtown Albuquerque)
Design standard	IBC 2024, ASCE 7-22, FHWA GEC No. 4
Soil parameters source	ASTM D1586 SPT, ASTM D4767 triaxial, ASTM D2487 classification
Groundwater modeling	Dupuit-Thiems for steady-state, MODFLOW for transient
Wall types designed	Soldier pile, secant pile, soil nail, diaphragm wall
Anchor capacity verification	Pull-out tests per PTI DC35.1-14
Global stability method	Spencer’s method (limit equilibrium), phi-c reduction (FEM)

Common questions

What does a deep excavation design package typically include for an Albuquerque project?

A complete package includes a geotechnical interpretive report with design soil parameters, lateral earth pressure envelopes for each wall segment (active, at-rest, surcharge), global stability checks using Spencer’s method, basal heave analysis for cuts in soft clay, groundwater control recommendations, and construction-phase monitoring thresholds. We also deliver shoring structural calculations sealed by a New Mexico-licensed professional engineer.

How much does a geotechnical design for a deep excavation cost in Albuquerque?

Fees range from US$1,910 for a single-family lot excavation evaluation to US$8,440 for a multi-level commercial basement with complex tieback systems. The final cost depends on cut depth, proximity to adjacent structures, and the number of borings required to characterize variable basin sediments.

Why can’t I just use a generic IBC earth pressure chart instead of a site-specific design?

Generic charts assume homogeneous soil and a simplified groundwater table. Albuquerque’s basin fill contains interbedded gravels, silts, and caliche that create abrupt stiffness contrasts. A site-specific design identifies where cemented layers can reduce wall bending moments — or where loose sand lenses demand higher tieback pre-loads to limit deflections.
